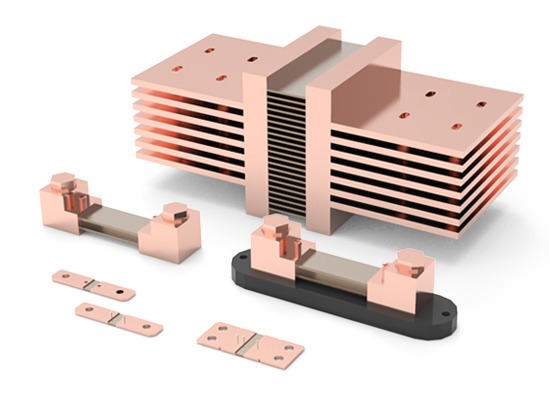

A DC shunt, which is actually a low resistance resistor, is usually used when a large current is to be measured. When current flows through the shunt, a millivolt voltage appears at both ends of it, so a millivolt voltmeter is used to measure this voltage to complete the calculation of high current.

Features

Tight Tolerance (Class 0.1)
Low Thermal EMF
Low TCR
Low PCR
Maximum Rated Current 100KA

Applications

BMS
Eletric Powder
Industrial Controls

Series	Description	Resistance Range	Tolerance	TCR	Rated Current	Output Voltage
RTBS0010	Mn-Cu alloy precision shunt, rated current 10A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	5mΩ-7.5mΩ	±0.1%	±20ppm	10A	50mV-75mV
RTBS0025	Mn-Cu alloy precision shunt, rated current 25A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	5mΩ-7.5mΩ	±0.1%	±20ppm	25A	50mV-75mV
RTBS0050	Mn-Cu alloy precision shunt, rated current 50A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	1mΩ-1.5mΩ	±0.1%	±20ppm	50A	50mV-75mV

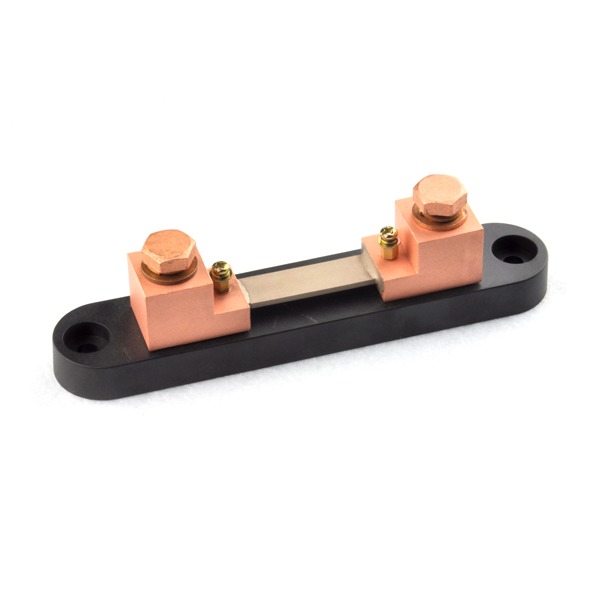

RTBS0100	Mn-Cu alloy precision shunt, rated current 100, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.5mΩ-0.75mΩ	±0.1%	±20ppm	100A	50mV-75mV

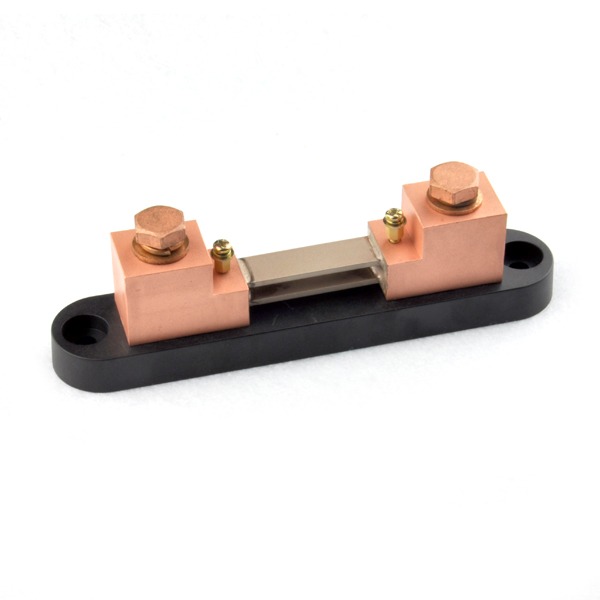

RTBS0200	Mn-Cu alloy precision shunt, rated current 200, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.25mΩ-0.375mΩ	±0.1%	±20ppm	200A	50mV-75mV

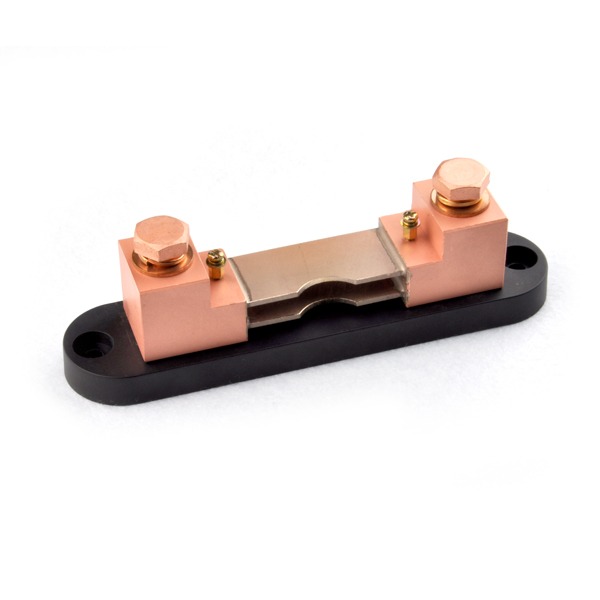

RTBS0300	Mn-Cu alloy precision shunt, rated current 300, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.167mΩ-0.25mΩ	±0.1%	±20ppm	300A	50mV-75mV
ARCS6918-L050	Economical Mn-Cu alloy shunt, the maximum rated current is 700A, and the resistance is 50 μ Ω	50μΩ	±0.5%	±100ppm	700A	35mV
ARCS6918-L100	Economical Mn-Cu alloy shunt, the maximum rated current is 500A, and the resistance is 100 μ Ω	100μΩ	±0.5%	±100ppm	500A	50mV
ARCS8518-L050	Economical Mn-Cu alloy shunt, the maximum rated current is 840A, and the resistance is 50 μ Ω	50μΩ	±0.5%	±100ppm	840A	40mV
ARCS8518-L100	Economical Mn-Cu alloy shunt, the maximum rated current is 600A, and the resistance is 100 μ Ω	100μΩ	±0.5%	±100ppm	600A	60mV

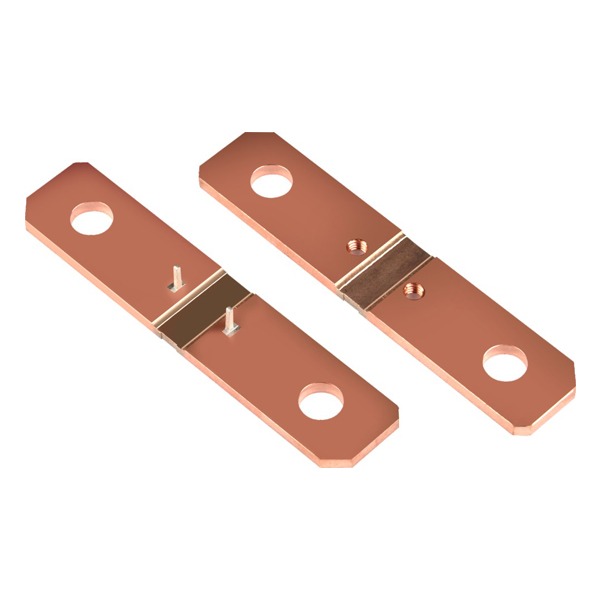

ARCS8518-L250	Economical Mn-Cu alloy shunt, the maximum rated current is 316A, and the resistance is 250 μ Ω	250μΩ	±0.5%	±100ppm	316A	75mV
ARCS8536-L025	Economical Mn-Cu alloy shunt, the maximum rated current is 1410A, and the resistance is 25 μ Ω	25μΩ	±0.5%	±100ppm	1410A	50mV
ARCS8536-L050	Economical Mn-Cu alloy shunt, the maximum rated current is 1000A, and the resistance is 50 μ Ω	50μΩ	±0.5%	±100ppm	1000A	50mV

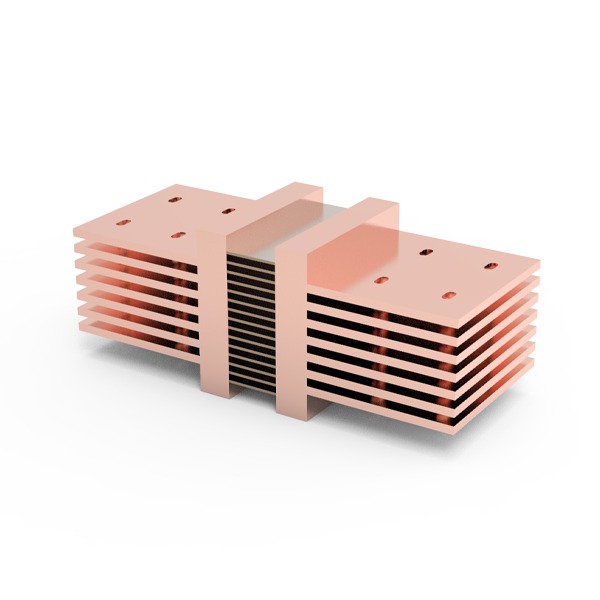

RTCS10K0	Mn-Cu alloy precision shunt, rated current 10000A, sensing tolerance ±0.1%,low thermal EMF, low TCR	5μΩ	±0.1%	±20ppm	10000A	50mV
RTCS16K0	Mn-Cu alloy precision shunt, rated current 16000A, sensing tolerance ±0.1%,low thermal EMF, low TCR	3.125μΩ	±0.1%	±20ppm	16000A	50mV
RTCS20K0	Mn-Cu alloy precision shunt, rated current 20000A, sensing tolerance ±0.1%,low thermal EMF, low TCR	2.5μΩ	±0.1%	±20ppm	20000A	50mV
RTCS0050	Mn-Cu alloy precision shunt, rated current 50A, sensing tolerance ±0.1%,low thermal EMF, low TCR	1mΩ-1.5mΩ	±0.1%	±20ppm	50A	50mV-75mV
RTCS0100	Mn-Cu alloy precision shunt, rated current 100A, sensing tolerance ±0.1%,low thermal EMF, low TCR	0.5Ωm-0.75mΩ	±0.1%	±20ppm	100A	50mV-75mV
RTCS0200	Mn-Cu alloy precision shunt, rated current 200A, sensing tolerance ±0.1%,low thermal EMF, low TCR	0.25Ωm-0.375mΩ	±0.1%	±20ppm	200A	50mV-75mV

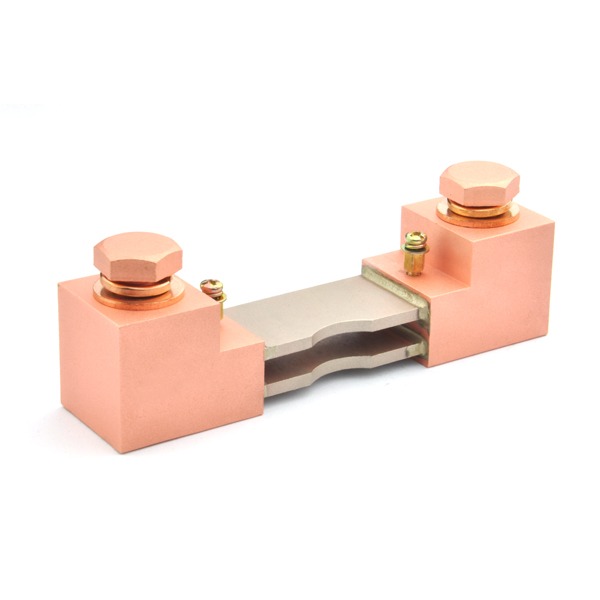

RTCS0300	Mn-Cu alloy precision shunt, rated current 300A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.167mΩ-0.25mΩ	±0.1%	±20ppm	300A	50mV-75mV
RTCS0500	Mn-Cu alloy precision shunt, rated current 500A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.1mΩ	±0.1%	±20ppm	500A	50mV
RTCS1000	Mn-Cu alloy precision shunt, rated current 1000A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.05mΩ	±0.1%	±20ppm	1000A	50mV
RTCS2000	Mn-Cu alloy precision shunt, rated current 2000A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.025mΩ	±0.1%	±20ppm	2000A	50mV
RTCS5000	Mn-Cu alloy precision shunt, rated current 5000A, sensing tolerance ±0.1%,low thermal EMF, low TCR, with base	0.01mΩ	±0.1%	±20ppm	5000A	50mV
